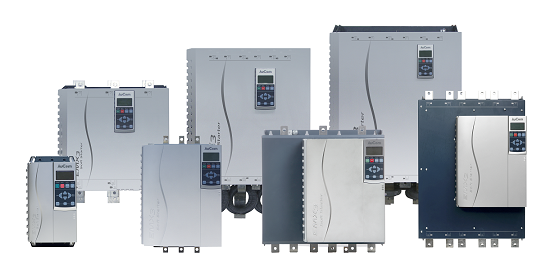

EMX3 Low Voltage Soft Starter

Starting Functions

XLR-8 adaptive acceleration
Constant current start mode
Current ramp start mode
Kickstart

Stopping Functions

XLR-8 adaptive deceleration
TVR soft stop
Brake mode
Coast to stop

Protection

Fully customisable protection
Motor thermal model
Motor thermistor input
Phase sequence
Undercurrent
Instantaneous overcurrent
Auxiliary trip input
Heatsink overtemperature
Excess start time
Supply frequency
Shorted SCR
Power circuit
Motor connection
RS485 failure
Motor overload
Current imbalance
Ground fault (optional)

Usability

Large viewable screen, with real-language text.
Status LEDs for immediate feedback.
Start, stop, reset, local/remote push buttons.
IP65 removable keypad.
Unique wiring loom separates wires for easy install and allows access from top, left or bottom.
Top and bottom cable retainers for tidier wiring.
Small footprint and depth saves space.

Keypad

Remote mounting option
Status LEDs
Easy to read screen
Real language feedback
Multi-language options
Shortcut buttons

Additional features

Starter communication timeout
Network communication trip
Auto detection of inline or inside delta power connection
Programmable auto start/stop
24 VDC auxiliary power supply
PT100 (RTD) input
Real time clock with battery backup
PowerThrough - enables the choice of continuous operation despite a power assembly failure. This allows production to continue while long-term remedial action can be taken.
Forward and reverse jog function
I/O expansion card (optional)

Communication modules

The EMX3 supports network communication using Profibus, Profinet, DeviceNet, Ethernet/IP, Modbus RTU or Modbus TCP protocols, via easy-to-install communication interfaces.

Finger guards

Enhance personnel safety by preventing accidental contact with live terminals. The finger guard kit fits EMX3-0220B to EMX3-1000B and provides IP20 protection when used with cables 22 mm or greater.

Input/output card

Add extra inputs and outputs for advanced integration:

2 x inputs
3 x relay outputs
1 x analog input
1 x analog output

RTD and ground fault

6 x PT100 RTD inputs
1 x ground fault input

To use ground fault protection a 1000:1, 5 VA current transformer is also required.

PC Software

Using AuCom's custom designed WinMaster software you can control, monitor and program your EMX3 from your desktop computer.

Low inertia loads - pumping or conveyors

XLR-8 provides precise control over soft stopping and is ideal for applications requiring a smoother soft stop. XLR-8 is ideal for low inertia loads such as conveyors. In pumping applications, the EMX3 can eliminate or substantially reduce the effects of water hammer - such as damage to pipes and check valves.

High inertia loads - Circular saws, ball mills

For high inertia loads, XLR-8 lets you take precise control over the motor's stopping time. Shorter stopping times help improve your production efficiency by reducing downtime between operating cycles.

Other applications that benefit from the EMX3 include:

Pumping (e.g. high head applications)
Compressors (for optimising blade control)
Bandsaws (easy blade alignment)
Irrigators (built-in timer)

General
Current Range		23 A ~ 1600 A (nominal)
Motor connection		In-line or inside delta
Bypass		Integrated internal or external
Supply
Mains Voltage (L1, L2, L3)
EMX3-xxxx-V4		200 VAC ~ 440 VAC (± 10%)
EMX3-xxxx-V7		380 VAC ~ 690 VAC (± 10%) (in-line connection)
EMX3-xxxx-V7		380 VAC ~ 600 VAC (± 10%) (inside delta connection)
Control Voltage		(A1, A2, A3) 110 ~ 220 VAC (+ 10% / -15%)
		or 230 ~ 440 VAC (+ 10% / -15%)
Mains Frequency		45 Hz to 66 Hz
Inputs
Inputs		Active 24 VDC, 8 mA approx.
Start (C23, C24)		Normally open
Stop (C31, C32)		Normally closed
Reset (C41, C42)		Normally open or closed
Programmable Inputs
Input A (C53, C54)		Normally open or closed
Input B (C63, C64)		Normally open or closed
Motor Thermistor (B4, B5)
PT100 RTD (B6, B7, B8)

Outputs
Relay outputs		10 A at 250 VAC resistive
		5 A at 250 VAC, AC15 pf 0.3
Run Relay (23, 24)		Normally Open
Programmable Outputs
Relay A (13, 14)		Normally Open
Relay B (31, 32, 34)		Changeover
Relay C (41, 42, 44)		Changeover
Analog Output (B10, B11)		0-20 mA or 4-20 mA
24 VDC Output (P24, COM)		200 mA
Environmental
Ingress protection:
EMX3-0023B ~ EMX3-0105B		IP20
EMX3-0145B ~ EMX3-1600C		IP00
Operating temperature		-10 °C ~ 60 °C
Storage temperature		- 10 °C ~ 60 °C
Humidity		5% to 95% Relative Humidity
